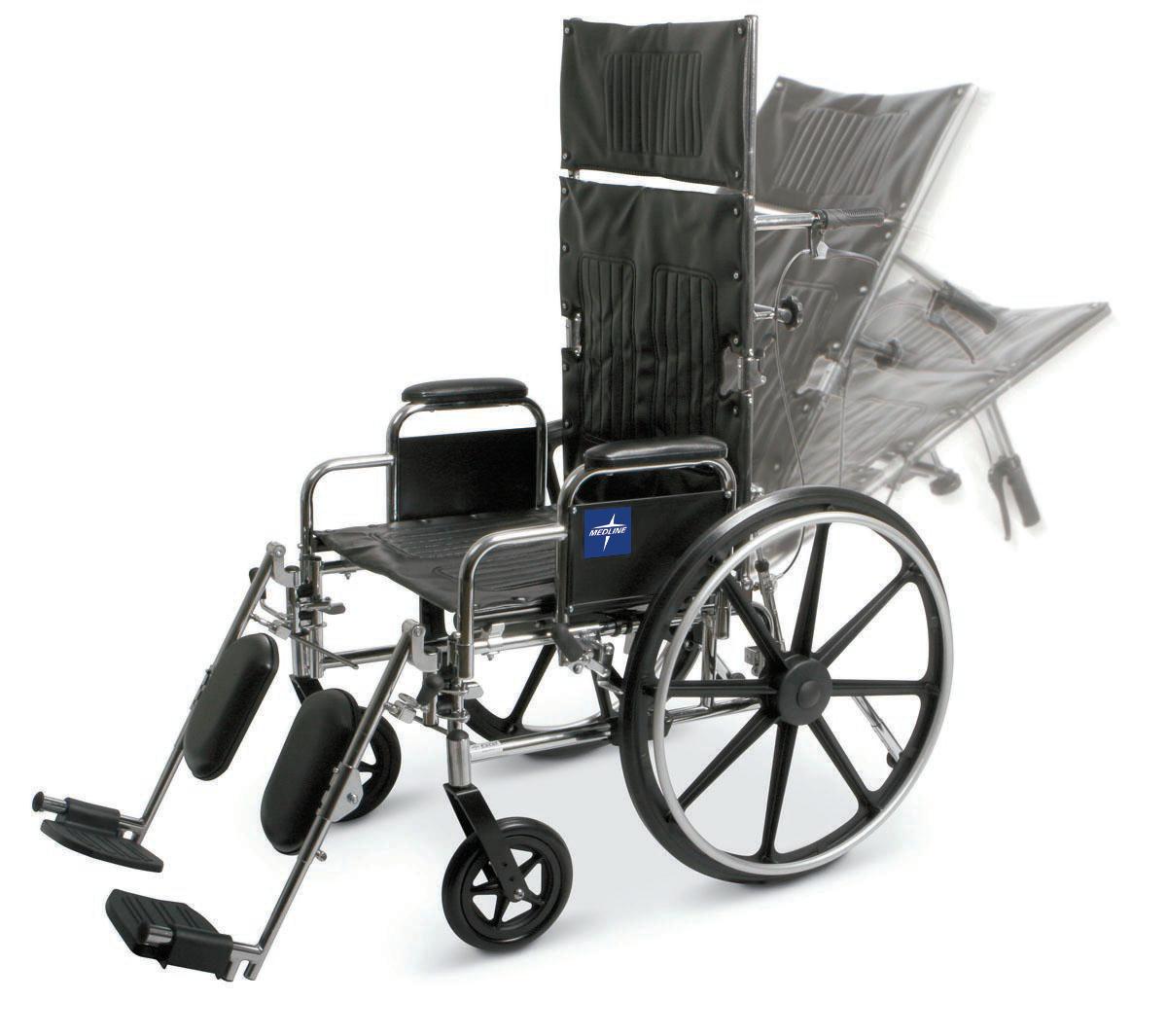

Excel Recliner
For Products: MDS808350, MDS808450, MDS808550, MDS808650

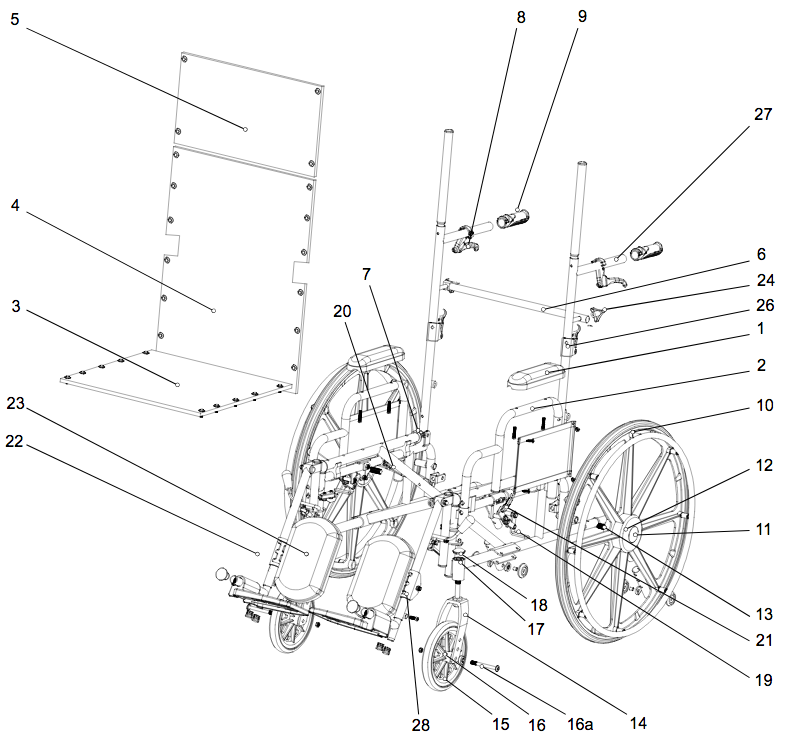

PARTS BY PRODUCT TYPE:
ARM RESTS
1. ARMREST PAD, DESK LENGTH, EACH
2. ARMREST ASSEMBLY, DESK LENGTH, REMOVABLE, PAIR
UPHOLSTERY
3. 18″ SEAT UPHOLSTERY W/SCREWS, VINYL
3. 20″ SEAT UPHOLSTERY W/SCREWS, VINYL
3. 22″ SEAT UPHOLSTERY W/SCREWS, VINYL
4. 16” BACK UPHOLSTERY W/SCREWS, 22” HIGH, VINYL
4. 18″ BACK UPHOLSTERY W/SCREWS, 22” HIGH, VINYL
4. 20” BACK UPHOLSTERY W/SCREWS, 22” HIGH, VINYL
4. 22”BACK UPHOLSTERY W/SCREWS, 22” HIGH, VINYL
5. 16″ HEADREST ASSEMBLY, UPHOLSTERY & POSTS, 10” HIGH, VINYL
5. 18″ HEADREST ASSEMBLY, UPHOLSTERY & POSTS, 10” HIGH, VINYL
5. 20″ HEADREST ASSEMBLY, UPHOLSTERY & POSTS, 10” HIGH, VINYL
5. 22″ HEADREST ASSEMBLY, UPHOLSTERY & POSTS, 10” HIGH, VINYL
STABILIZING BAR
6. 16” STABILIZING BAR, FOR BACK OF RECLINER
6. 18″ STABILIZING BAR, FOR BACK OF RECLINER
6. 20″STABILIZING BAR, FOR BACK OF RECLINER
6. 22″STABILIZING BAR, FOR BACK OF RECLINER
7. STABILIZING BAR KNOBS
RECLING SYSTEM
8. RECLINING SYSTEM – PISTONS, PAIR
9. CABLE & RELEASE FOR RECLINING SYSTEM, PAIR
REAR WHEEL
10. REAR WHEEL ASSEMBLY W/BEARING & HANDRIM
11. HANDRIM W/SCREWS, COMPOSITE, EACH
12. HUBCAP, REAR WHEEL, EACH, WITH B* SERIAL NUMBERS
12. HUBCAP, REAR WHEEL, EACH, WITH U* SERIAL NUMBERS
13. AXLE FOR REAR WHEEL, REMOVABLE ARMS, EACH
14. BEARING, REAR WHEEL, SET
FRONT CASTER
15. FRONT CASTER 8″, W/BEARINGS, EACH
16. FORK, HEMI HEIGHT ADJUSTABLE, BLACK, EACH
17. AXLE & HARDWARE FOR FRONT CASTER, SET
18. BEARINGS FOR FRONT CASTER, PAIR
19. STEM BEARINGS FOR FRONT CASTER, PAIR
20. DUST CAP, EACH
WHEEL LOCK
22. WHEEL LOCK HANDLE, BLACK RUBBER TIP, EACH (PULL TO LOCK)
FOOTRESTS & LEGRESTS
24. FOOTPLATE ASSEMBLY, COMPOSITE, PR
25. CALF PAD, BLACK
26. BRACKET AND PLATFORM FOR CALF PAD, SET
27. FOLDING MECHANISM, PADDLE, AND SOCKET
28. UPPER PUSH HANDLES, PAIR
29. SUPPORT HOLDER, PLASTIC, 16” (40.6cm) & 18” (45.7cm)
29. SUPPORT HOLDER, PLASTIC, 20” (50.8cm) & 22” (55.9cm)
